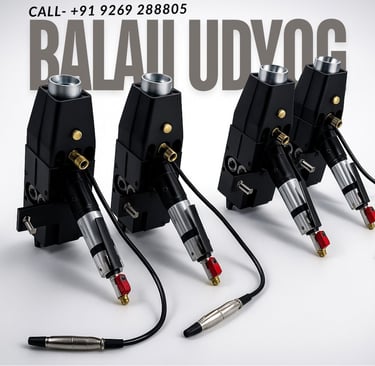

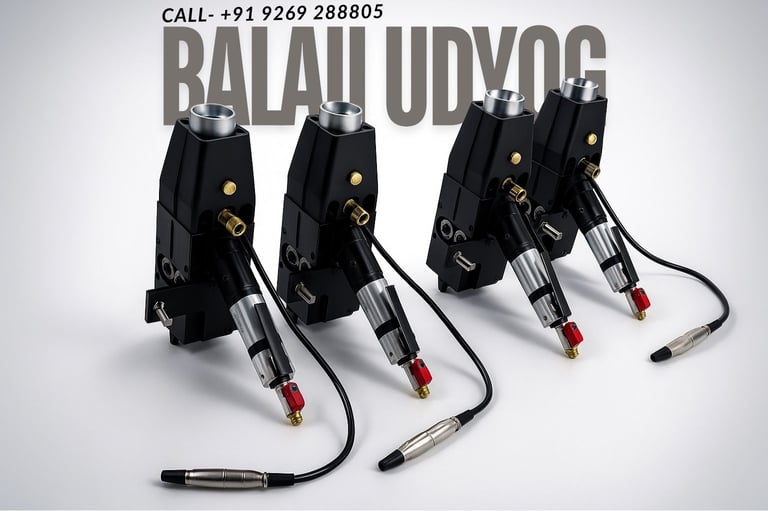

Arc Spray Gun BU-8830 – Complete Guide, Working, Features & Spare Parts

Introduction to Twin Wire Arc Spray Technology

Twin wire arc spray technology is an advanced thermal spray coating technique that has gained considerable attention for its efficiency and effectiveness in creating durable metallic coatings. The process begins with the feeding of two metal wires into a spray gun, which serve as the anodes for the electric arc generation. When these wires are brought into contact with each other, an electric arc is created, resulting in the melting of the wire material. This signifies a pivotal moment where the physical state of the metal transitions, thereby paving the way for an innovative coating application.

The molten metal is then atomized by a stream of compressed air, which effectively breaks it into fine droplets. These droplets are propelled onto the substrate surface, where they solidify upon contact, forming a strong and cohesive metallic coating. The use of two wires allows for a higher deposition rate compared to conventional thermal spray methods, which translates into more efficient processing and reduced operational costs.

One of the key advantages of twin wire arc spray technology is its ability to produce uniform and dense coatings that exhibit excellent adhesion to the substrate. This capability makes it ideal for various industrial applications, such as protecting components in the aerospace, automotive, and marine sectors from wear and corrosion. Furthermore, the technology allows for the deposition of a variety of metal alloys, expanding its applicability across different industries.

In essence, the twin wire arc spray gun represents a significant leap in thermal spraying technology. It simplifies the coating process, enhances quality, and promotes durability, addressing the challenges faced by traditional coating methods. This innovative approach not only meets the demands of modern manufacturing but also opens up pathways for future advancements in coating technologies.

Key Features and Benefits of the Twin Wire Arc Spray Gun

The Twin Wire Arc Spray Gun manufactured by Balaji Udyog is a cutting-edge tool designed to meet the high demands of various industrial applications. One of its standout features is its remarkable durability, which ensures that the spray gun can withstand the rigorous conditions often encountered in thermal spraying processes. Constructed from high-quality materials, this device is engineered to perform consistently over extended periods, reducing the need for frequent maintenance and replacement.

Another crucial aspect of the Twin Wire Arc Spray Gun is its innovative smooth wire feeding mechanism. This feature is integral to achieving optimal performance, as it allows for a consistent flow of the wire, minimizing the likelihood of jams or interruptions during operation. The design contributes not only to a seamless application process but also enhances the overall efficiency of thermal spraying. As a result, operators can achieve a more uniform coating with fewer defects.

Stability in spray patterns is yet another benefit of the Twin Wire Arc Spray Gun. The technology behind it enables precise control over the spray process, ensuring that high-quality coatings are applied consistently. This stability is particularly advantageous in applications such as industrial repair, anti-corrosion coating, and shaft rebuilding, where precision is paramount. The ability to maintain stability fosters improved surface coverage, significantly enhancing the quality of wear-resistant coatings applied to various components.

Utilizing the Twin Wire Arc Spray Gun yields several benefits in the realm of high-wear surface protection. By delivering high-performance coatings, this tool extends the lifespan of components exposed to harsh environments, ultimately leading to lower operational costs and increased productivity. The benefits stem not only from the enhanced efficiency and quality of the coatings but also from the reliability of the equipment, making it an invaluable asset for industries seeking effective thermal spray solutions.

Applications of Twin Wire Arc Spray Technology

The twin wire arc spray technology has emerged as a highly effective thermal spray solution utilized across a variety of industries. Its versatility makes it particularly valuable in applications such as industrial repair, anti-corrosion measures, and enhancing components that are subject to high wear and tear. The process involves feeding two wires into an electric arc, creating molten droplets that are then propelled onto a substrate, resulting in a coating that is both durable and resistant to various forms of environmental stress.

One prevalent application of the twin wire arc spray gun is in the field of industrial repair. Equipment such as pumps, valves, and turbines often face wear from continuous operation in harsh environments. By applying coatings through twin wire arc spraying, these components can be restored to their original functionality without the need for extensive replacement processes. This not only reduces downtime but also offers significant cost savings for maintenance budgets.

Anti-corrosion solutions also benefit extensively from this technology. Industries such as oil and gas, marine, and construction frequently contend with corrosion due to exposure to moisture, chemicals, and extreme temperatures. The twin wire arc spray provides a robust barrier against corrosion, prolonging the lifespan of critical infrastructure. For example, several offshore oil rigs have implemented this technology to protect their structures, leading to increased safety and reduced maintenance intervals.

Furthermore, components exposed to high wear and tear, such as those found in manufacturing equipment or heavy machinery, demonstrate substantial improvements when treated with twin wire arc spray coatings. Real-world case studies have shown enhanced wear resistance, resulting in higher operational efficiency and reduced replacement costs. The technology’s adaptability in various sectors underscores its significance as a reliable thermal spray solution.

Future Trends in Thermal Spray Technology

The thermal spray technology landscape is rapidly evolving, with numerous advancements anticipated in coming years, particularly concerning twin wire arc spray systems. These systems have gained recognition for their ability to produce high-quality coatings with improved efficiency. As industries increasingly demand better performance and sustainability, manufacturers and researchers are actively pursuing innovations that will shape the future of thermal spray applications.

One key trend involves the development of advanced materials designed for enhanced performance in thermal spraying. Engineers are exploring novel alloys and composite materials that not only provide superior wear resistance and corrosion protection but also meet stringent environmental regulations. The integration of nanotechnology presents exciting possibilities for creating coatings with unique properties, offering improved surface hardness and reduced friction, thereby extending the life of components significantly.

Additionally, automation and the use of artificial intelligence (AI) in thermal spray processes are beginning to emerge as game changers. Automated twin wire arc spray systems can optimize parameters in real-time, ensuring consistent coating quality and maximizing material efficiency. With machine learning, these systems can learn from past applications, adapting over time to produce even better results while reducing waste and energy consumption.

Sustainability is also gaining prominence within the field. Future thermal spraying processes will likely emphasize minimizing environmental impact through the use of eco-friendly materials and practices. This includes recycling spent materials, employing low-emission techniques, and pursuing energy-efficient technologies. Industry stakeholders will need to balance performance enhancement with ecological responsibility, paving the way for a greener approach to thermal spraying.

In summary, the future of thermal spray technology, particularly regarding twin wire arc spray systems, is promising. Emerging materials, automation, and sustainability initiatives are expected to drive efficiency and effectiveness, ensuring these systems remain integral to the production processes across various industries.

How the Arc Spray Process Works

The BU-8830 gun operates by feeding two consumable metal wires into the arc zone, where an electric arc melts the wire tips. A high-velocity air jet breaks the molten metal into fine droplets and sprays them onto the job surface, forming a dense and durable coating.
Key advantages include:

• Lower porosity

• High bond strength

• Good surface finish

• High deposition rate
  ARC 8830 MANUAL

The wires are fed through a precision wire-feeding system powered by a high-torque air motor, ensuring smooth and continuous operation. The nozzle design maintains a stable arc and uniform spray pattern for consistent coating quality.
BU AIR DRIVE-GUN-Manual.pdf

Main Components of the BU-8830 Arc Spray Gun

According to the manual, the system includes:

• Front End Assembly (Close head, Nozzle positioner, Nozzle caps, Protective cap, Contact tubes)

• Drive Mechanism (Air motor, Worm shaft, Wire feed rollers, Yoke assembly)

• Power source & control console

• Twin wire spool stand
  BU AIR DRIVE-GUN-Manual.pdf

Each component is engineered for durability, precise alignment, and reliable performance during continuous industrial spraying.

Key Features of the BU-8830 Arc Spray Gun

1. High-Velocity Atomization

The spraying head produces a stable arc and finely atomized metal spray, resulting in smooth and strong coatings.
ARC 8830 MANUAL

2. Air-Driven Wire Feed System

A high-torque air motor drives the gear mechanism, maintaining consistent wire feed even under heavy load.
BU AIR DRIVE-GUN-Manual.pdf

3. Easy Maintenance & Servicing

The manual provides a routine schedule for cleaning contact tubes, rollers, and replacing worn parts, ensuring long life and trouble-free operation.
ARC 8830 MANUAL

4. Wide Range of Spray Materials

Suitable for spraying:

• Zinc

• Aluminum

• Steel

• Copper

• Bronze
  Using wire sizes between 1.6 mm – 3.17 mm, depending on the coating requirement.
  BU AIR DRIVE-GUN-Manual.pdf

5. Low Operational Cost

Among thermal spray methods, arc spray offers the lowest running cost with high output efficiency.
ARC 8830 MANUAL

Applications of BU-8830 Arc Spray System

This arc spray system is widely used in industries such as:

• Power plants

• Oil & gas

• Marine & offshore

• Steel industries

• Engineering & maintenance

• Automotive refurbishment

Common applications include anti-corrosion coating on structures, shafts, rollers, pipelines, tanks, and component rebuilding.

Spare Parts Availability

The manuals provide a detailed list of original BU-8830 spare parts such as:

• Nozzle caps (Gold, Green, Blue, Red)

• Contact tubes & tips (Brass / Copper)

• Drive gears, worm shaft, wire rollers, yoke assemblies

• Mounting plates, insulation sheets, guide tubes
  BU AIR DRIVE-GUN-Manual.pdf

All parts are designed to maintain perfect alignment and ensure high-performance arc spraying.

Recommended Spraying Parameters (From Manual)

For common materials:

• Aluminum (1.6–2.0 mm): 29–31 V, 50–200 A, 4.2 bar

• Zinc (1.6–2.0 mm): 21–22 V, 50–200 A, 4.2 bar
  ARC 8830 MANUAL

Nozzle caps are selected based on desired coating texture—fine, medium, or coarse.

Conclusion

The BU-8830 Arc Spray Gun is a robust, industrial-grade solution for high-quality thermal spray coatings. With excellent efficiency, consistent performance, and easy availability of spare parts, it is ideal for heavy-duty coating applications across multiple industries.

If you need spare parts, full arc spray systems, or service support, Balaji Udyog provides complete solutions for thermal spray operations.
