Powder Flame Spray Torch – Complete Spare Parts Guide

Why Genuine Spare Parts Are Important

Using correct and recommended spare parts helps to:

• Maintain proper gas balance

• Avoid backfire and flame instability

• Ensure uniform powder feed

• Improve coating adhesion and density

• Reduce downtime and repair cost

Poor-quality or worn parts can lead to coating defects, gas leakage and unsafe operation INSTRUCTION MANUAL 5PMII (1).

Main Spare Parts of Powder Flame Spray Torch

1. Nozzle Assembly

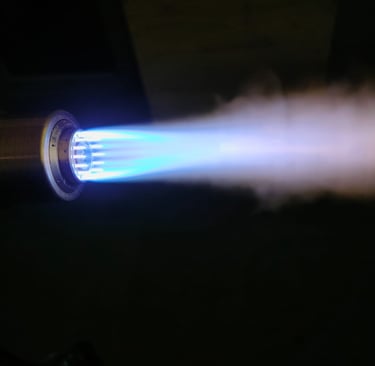

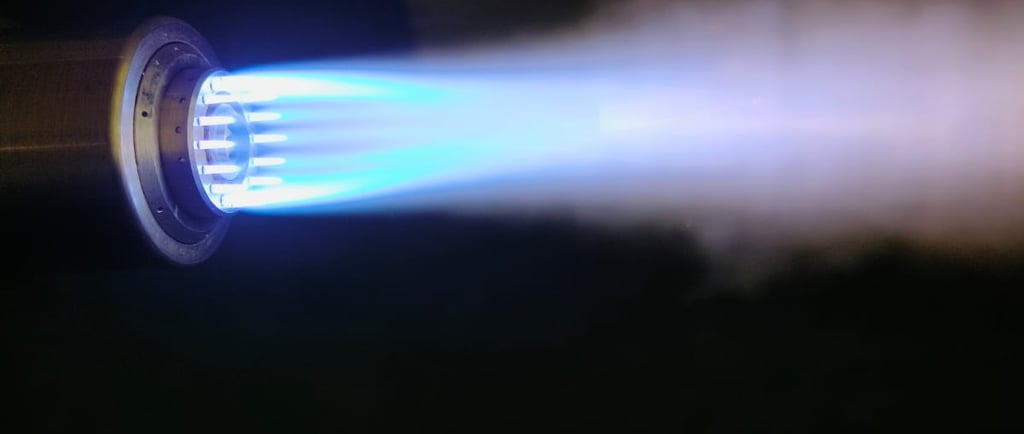

The nozzle controls flame shape, temperature distribution and spray pattern.
It directly affects coating quality and deposition efficiency.

Functions:

• Guides oxygen and fuel gas flow

• Produces stable flame

• Determines spray cone width

Maintenance Tip:
Clean nozzle jets regularly using proper cleaning wires. Never use drills, as oversized holes can cause backfire and uneven spraying INSTRUCTION MANUAL 5PMII (1).

2. Siphon Plug Assembly

The siphon plug draws powder into the flame through the aspirator system.

Functions:

• Creates suction for powder feed

• Aligns powder entry with flame

• Ensures steady material flow

Maintenance Tip:
Clean grooves and jets periodically. Inspect aspirator O-rings and replace them if damaged to prevent gas leakage and powder feed problems.

3. Powder Flow Control Valve

The powder flow control valve regulates the amount of powder entering the flame.

Functions:

• Controls coating thickness

• Maintains consistent spray rate

• Allows fine adjustment for different powders

Maintenance Tip:
Keep valve clean and properly lubricated. Incorrect adjustment can result in excessive powder loss or poor coating bonding.

4. Metering Valve Assembly

The metering valve ensures accurate powder feeding from the canister.

Functions:

• Controls powder feed opening

• Maintains uniform material delivery

• Supports different powder grades

Different metering valves are used for different powder sizes, making it an important spare for process flexibility INSTRUCTION MANUAL 5PMII (1).

5. Gas Valve Assembly

The gas valve assembly controls oxygen and fuel gas flow to the nozzle.

Functions:

• Starts and stops gas flow

• Maintains correct flame balance

• Ensures safe shut-off

Maintenance Tip:
Inspect O-rings and seals during major servicing. Replace worn parts only with recommended replacements to avoid gas mixing or leakage.

6. O-Rings and Seals

O-rings are small but extremely critical spare parts.

Functions:

• Seal gas passages

• Prevent backfire

• Avoid air and gas leakage

Maintenance Tip:
Use correct lubricant as specified. Never soak O-rings in solvent. Replace immediately if cuts or deformation are found INSTRUCTION MANUAL 5PMII (1).

7. Powder Canister and Cover

The powder canister stores and feeds powder to the torch.

Functions:

• Holds spray powder securely

• Allows easy loading and mixing

• Ensures smooth gravity feeding

Maintenance Tip:
Always keep powder dry and clean. Moisture in powder can cause erratic feeding and poor coating results.

Recommended Spare Parts to Keep in Stock

For uninterrupted operation, it is recommended to keep:

• Nozzle set

• Siphon plug assembly

• Metering valves

• O-ring kits

• Powder flow control valve

• Gas valve service kit

Keeping these spares ready helps minimize downtime during maintenance or emergency repair.

Safety Notes While Replacing Spare Parts

• Always shut off oxygen and fuel gas supply

• Allow torch to cool before disassembly

• Clean parts on a dust-free bench

• Use proper tools and cleaning wires only

• Follow correct lubrication practices INSTRUCTION MANUAL 5PMII (1)

Conclusion

The performance and safety of a Powder Flame Spray Torch depend heavily on its spare parts condition. Regular inspection, proper cleaning and timely replacement of nozzles, siphon plugs, valves and seals ensure reliable operation and high-quality coatings. Using correct spare parts not only improves coating results but also protects equipment and operator safety.
