Powder Flame Spray Torch: Working, Applications & Spare Parts Guide

What is Powder Flame Spray Technology?

Powder flame spraying is a thermal spray process in which powdered material is fed into a high-temperature flame produced by oxygen and fuel gas. The powder particles melt in the flame and are projected at high velocity onto a properly prepared surface. After impact, the molten particles flatten, solidify and form a dense, adherent coating.

In powder flame spray torches, the powder is gravity-fed through a metering valve and drawn into an aspirator chamber. From there, it passes through the flame, melts and deposits uniformly on the work surface. This design allows high deposition efficiency with minimal material loss INSTRUCTION MANUAL 5PMII (1).

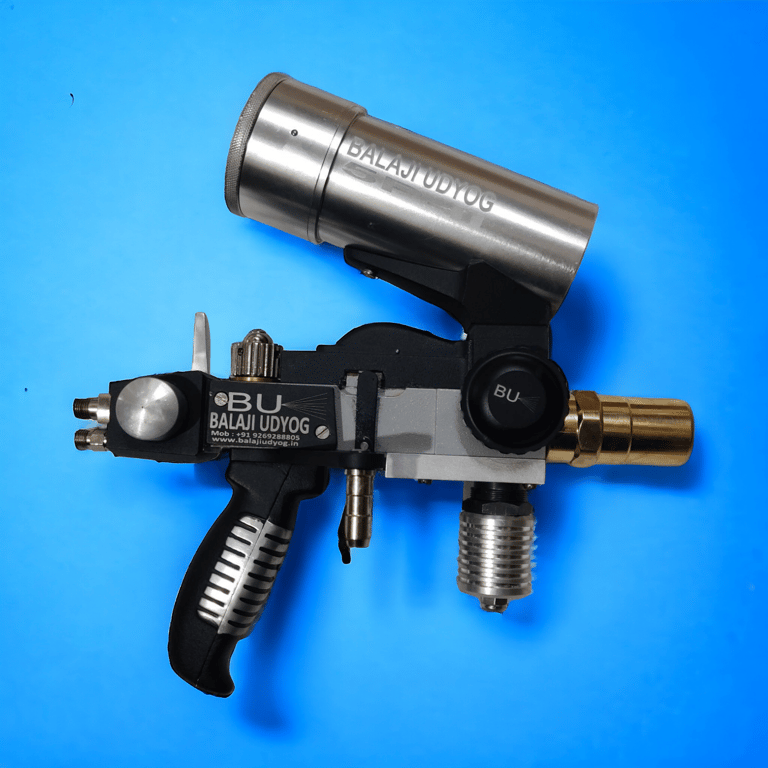

Construction and Design of Powder Flame Spray Torch

The powder flame spray torch consists of several precision-engineered parts that work together to ensure stable spraying:

• Powder Canister – Stores and feeds powder material

• Metering Valve – Controls powder feed rate

• Siphon Plug Assembly – Draws powder into the flame

• Nozzle Assembly – Shapes flame and spray pattern

• Gas Valve Assembly – Regulates oxygen and fuel gas

• Flow Control Valve – Adjusts coating thickness and spray rate

This robust design provides excellent resistance to backfire and allows easy maintenance and part replacement INSTRUCTION MANUAL 5PMII (1).

Fuel Gases Used in Powder Flame Spray Torch

Powder flame spray torches operate using oxygen combined with either acetylene or hydrogen. Acetylene is commonly used for general spraying applications due to its high flame temperature and economy. Hydrogen is preferred for fine powders and specific materials such as copper coatings.

Correct gas balance is extremely important, as even slight variations in oxygen or fuel flow can affect coating quality and deposition efficiency INSTRUCTION MANUAL 5PMII (1).

Applications of Powder Flame Spray Torch

Powder flame spray torches are widely used across many industrial sectors, including:

• Repair of worn shafts, journals and bearings

• Corrosion protection of valves and pump components

• Hardfacing of machine parts

• Boiler, turbine and heat exchanger components

• Dimensional build-up for remachining

• Application of ceramic and cermet coatings

These applications help industries reduce downtime, improve component life and lower overall maintenance costs.

Powder Flame Spray Torch Spare Parts

To maintain consistent spray quality and safe operation, the use of genuine and properly maintained spare parts is essential.

Common Spare Parts:

• Nozzles (standard and special types)

• Siphon plug and aspirator assembly

• Powder flow control valve

• Gas valve and O-ring seals

• Metering valves for different powder grades

• Powder canister and cover

Regular inspection and timely replacement of these spare parts help prevent backfire, uneven coatings and gas leakage INSTRUCTION MANUAL 5PMII (1).

Maintenance and Safety Guidelines

Proper maintenance is key to long torch life and operator safety. Powders should always be kept dry and clean to avoid feed problems. Nozzles and siphon plugs must be cleaned regularly, and damaged O-rings should be replaced immediately. Gas hoses and connections must be checked frequently for leaks.

Adequate ventilation, protective clothing, eye protection and respiratory safety equipment are strongly recommended during flame spray operations INSTRUCTION MANUAL 5PMII (1).

Advantages of Powder Flame Spray Torch

• High coating efficiency

• Suitable for a wide range of powders

• Easy operation and maintenance

• Strong, dense and uniform coatings

• Cost-effective repair solution

Conclusion

A Powder Flame Spray Torch is a reliable and versatile solution for industrial coating and repair applications. When operated correctly and maintained with genuine spare parts, it delivers consistent coating quality, long service life and safe operation. This makes it an ideal choice for workshops and heavy-duty industrial environments.
