Thermal Spray Coating Equipment: Complete Guide to Flame Spray Guns, Metal Spraying Systems & Industrial Surface Protection

What is Thermal Spray Coating?

Thermal spray coating is an industrial process where molten or semi-molten materials are sprayed onto a surface to create a protective coating. This process improves:

• Wear resistance

• Corrosion protection

• Heat resistance

• Surface hardness

• Dimensional restoration

• Electrical insulation

• Anti-friction properties

The coating material can include:

• Zinc

• Aluminum

• Nickel

• Copper

• Tin

• Steel

• Molybdenum

• Babbitt alloys

Thermal spray coating is widely used in:

• Steel plants

• Cement industries

• Marine industries

• Oil & gas plants

• Power plants

• Automotive industries

• Aerospace industries

• Paper mills

• Textile industries

• Railway industries

• Roll manufacturing units

What is a Flame Spray Gun?

A flame spray gun is a thermal spray device used for applying molten metal coatings onto industrial components. The gun melts metallizing wire using oxygen and fuel gas, while compressed air atomizes the molten metal into fine spray particles.

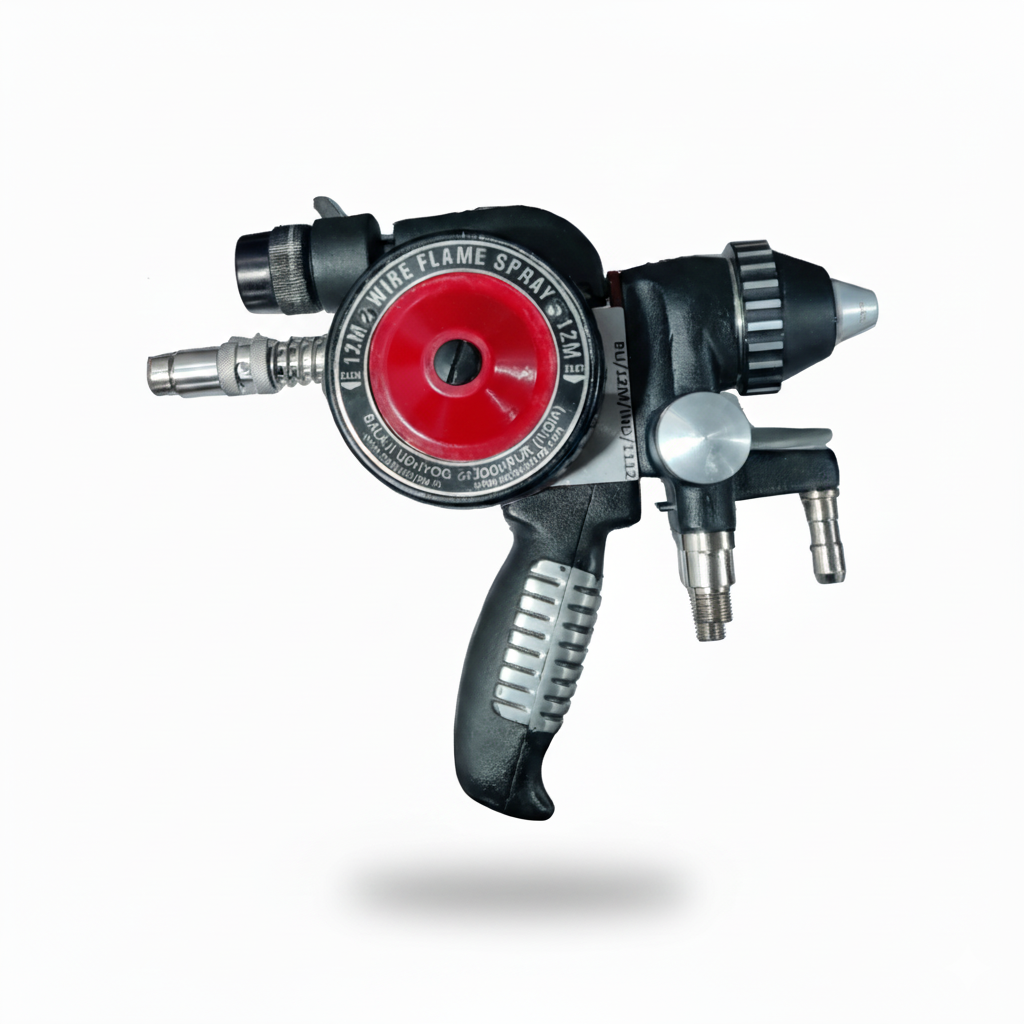

The BU Type 12M Flame Spray Gun from Balaji Udyog is designed for continuous industrial service and efficient thermal spray applications.

Key Features of 12M Flame Spray Gun

• High spray efficiency

• Universal gas head

• Air turbine wire feed system

• Easy maintenance

• Durable construction

• Corrosion-resistant parts

• Long operating life

• Smooth wire feeding

• High-speed coating capability

The gun supports multiple fuel gases including:

• Acetylene

• Propane

• LPG

• MPS Gas

• Hydrogen

• Natural Gas

Wire Flame Spraying System for Industrial Coating

A wire flame spraying system is one of the most economical and effective thermal spray technologies available today. It is commonly used for:

• Shaft restoration

• Roll coating

• Anti-corrosion coating

• Dimensional recovery

• Surface rebuilding

• Marine coating

• Zinc metallizing

• Aluminum coating

The system includes:

• Flame spray torch

• Air compressor

• Oxygen regulator

• Gas control unit

• Metallizing wire

• Dust collection system

• Wire control unit

The BU Type 12M system requires approximately 30 CFM compressed air at 65 PSI for proper operation.

12M Flame Spray Torch Specifications

The 12M Wire Flame Spray Torch is one of the most demanded thermal spray coating guns in the global market.

Technical Specifications

• Wire Size: 3.17 mm standard

• Wire Feed: Air Turbine

• Compressed Air: 45 CFM FAD @ 75 PSI

• Fuel Gases: Oxygen + LPG/Propane/Acetylene

• Net Weight: 2.87 kg

Spray Rate Capacity

MaterialOutput Spray RateZinc21.80 kg/hrAluminum5.00 kg/hrPure Tin22.70 kg/hrBabbitt22.70 kg/hrMolybdenum3.40 kg/hrCopper10.90 kg/hrCarbon Steel5.90 kg/hrPure Nickel4.50 kg/hr

Advantages of Thermal Spray Coating

1. Corrosion Protection

Thermal spray zinc and aluminum coatings protect steel structures from corrosion in marine and industrial environments.

2. Cost-Effective Repair

Instead of replacing expensive machine parts, worn surfaces can be rebuilt economically.

3. Increased Equipment Life

Industrial components gain extended operational life with protective coatings.

4. Minimal Heat Distortion

Unlike welding, thermal spray coating produces very low heat distortion.

5. High Bond Strength

Properly prepared surfaces achieve excellent coating adhesion.

Industrial Applications of Metallizing Equipment

Steel Industry

• Roll coating

• Continuous caster parts

• Furnace components

Marine Industry

• Ship hull protection

• Offshore structures

• Corrosion-resistant coating

Power Plants

• Boiler tubes

• Turbine shafts

• Heat-resistant coatings

Cement Plants

• Fan shafts

• Rollers

• Wear-resistant coatings

Automotive Industry

• Crankshaft restoration

• Bearing housing repair

• Engine component coating

Why Choose Balaji Udyog Thermal Spray Equipment?

Balaji Udyog Official Website is a trusted manufacturer and exporter of:

• Thermal spray coating equipment

• Flame spray guns

• Arc spray systems

• HVOF systems

• Plasma spray systems

• Shot blasting machines

• Blast rooms

• Air compressors

• Metallizing wires

• Industrial coating systems

Global Supply

We supply thermal spray equipment worldwide including:

• USA

• UAE

• Saudi Arabia

• South Africa

• Europe

• Southeast Asia

• Latin America

Our Strengths

• Competitive pricing

• OEM manufacturing

• Export quality products

• Fast delivery

• Technical support

• Spare parts availability

• Customized solutions

Surface Preparation Before Thermal Spray Coating

Proper surface preparation is essential for strong coating adhesion.

Common preparation methods include:

• Shot blasting

• Grit blasting

• Sand blasting

• Surface roughening

• Degreasing

Balaji Udyog also supplies:

• Portable blasting machines

• Blast cabinets

• Blast rooms

• Blasting nozzles

• Abrasives

• Blast hoses

Flame Spray Gun Safety Measures

Safety is critical in thermal spray applications. Operators should understand:

• Gas handling safety

• Respiratory protection

• Fire prevention

• Dust collection requirements

• Equipment maintenance

• Proper ventilation

The installation must include an effective exhaust and dust collection system for metal dust safety.

Future of Thermal Spray Coating Industry

The global thermal spray coating market is growing rapidly due to rising demand for:

• Industrial maintenance

• Corrosion-resistant coatings

• High-performance machinery

• Energy-efficient repair solutions

• Aerospace coatings

• Oil & gas infrastructure protection

Industries worldwide are increasingly investing in advanced thermal spray systems to reduce downtime and improve operational efficiency.

Contact Balaji Udyog for Thermal Spray Equipment

If you are looking for:

• Flame spray guns

• Metallizing equipment

• Wire flame spray systems

• Thermal spray coating machines

• Arc spray equipment

• Zinc spray systems

• Industrial coating solutions

then Balaji Udyog is your trusted global partner.

Contact Information

• Website: www.balajiudyog.in

• Email: sales@balajiudyog.in

• Mobile: +91 9269288805

We are serving industries globally with high-quality thermal spray coating equipment and metallizing systems.
